Rig Model: TT300 Hours: 18 Engine: Deutz F6L912 / 66 kW Rated Depth Capacity: 300 m Feed Cylinder: 100 mm Barrel / 70 mm Shaft / 4 m Stroke Outrigger (Jacks): 4x Boxed Outriggers with 800 m Stroke Foam Pump: 21 Litre per min / 35 bar Foam/Water Tank: 120 Litre Axles: 2x 5 Tonne Air Braked Axles Tower: Direct on Cylinder / Triangle Shape Winch: 1 Tonne Push Down Force: 5,000 kgf @ 175 bar Pull Up Force: 13,000 kgf @ 175 bar Tilt Cylinders: 2x 80 Barrel 50 Shaft Breakout: 300 mm Stroke Cylinder Hydraulic Oil Tank Capacity: 330 Litres - Hydraulic Oil Cooler - Extended Tower to accommodate 4 m Stroke Cylinder - Spanners Included: 1x Breakout / 2x Keeper / 3x Hammer Modifications; - Hydraulically Tilt Rotary Head - Rotary changed to geared Rotary Head with Hollow Spindle (8,000 Nm Torque) - Including 2x Eaton Hydraulic Motors - Side Shift (on rotary head – opens up the tower for longer casing, etc.) Support Truck Make: Volvo Model: FH12 460 KM’s: 1,040,378 Type: 8x4 Air Compressor Make: Atlas Copco Model: XRV1200 Year: 2020 Hours: 122 Engine: Cummins Pressure: 22.7 bar / 330 PSI Engine/Motor Speed: 1,900 RPM Engine/Motor Power: 325 kW / 430 HP 1,200 CFM / 330 PSI - Included Drill Bits, Rods and Drilling Equipment Trailerised Drill Rig Support Truck Air Compressor Package Location: New Zealand Learn More

Make: Schramm Model: T660 H Rotadrill Engine: Caterpillar CAT 3406B DITA @ 450 HP Pulldown: 30,000 lbs Pullback: 44,000 lbs Capacity: 5" Inch Rams / 350 m R/C 4 1/2" Inch Remet Rods Stroke: 6.5 m Top Drive: R/C Head Twin Motor 2 Speed / 0-160 RPM @ 38,000 lbs / 0-53 RPM @ 75,000 lbs Onboard Air Compressor: Sullair 900 CFM / 350 PSI Mounting: Caterpillar CAT 325 Wide Track Track Mounted Drill Rig Location: New Zealand Learn More

Rig Model: ZJ50D/3150 Year: 2012 Mast Model: JJ315/45-K6 Substructure Model: DZ3159-S Drawworks Model: JC50D Power: 1,500 HP Rotary Table Model: ZP-375 Full Opening: 37.5” Inch Rotary Speed: 300 RPM Mud Pump Power: 1,600 HP Stroke: 120 RPM Working Pressure: 5,000 PSI Quantity: 2x Mud Tank Shaker Tank: 25 CuM Intermediate Tank: 40 CuM Suction and Mixing Tank: 20 CuM Solids Control - 3x Shale Shaker - 1x Mud Cleaner - 1x Centrifuge Drill Rig Location: Japan Learn More

Make: SPM Weir Model: TWS2250 Year: 2022 (Reman Rebuild) Hours: Approx. 7,000 Engine: Caterpillar CAT C32 (Rated @ 1,350 HP) Transmission: Allison 8000 Series Auto (DP8962R) Dimensions; Length: 9,135 mm (Overall) Width: 2,505 mm Height: 2,615 mm (On Ground) Height: 4,280 mm (Raised) Weight: 20,000 kg - When raised has enough height for a trailer of 1,500 mm to drive underneath Skid Mounted Jack Up Frac Mud Pump Location: Queensland, Australia Learn More

Make: SPM Weir Model: TWS2250 Year: 2022 (Reman Rebuild) Hours: Approx. 7,000 Engine: Caterpillar CAT C32 (Rated @ 1,350 HP) Transmission: Allison 8000 Series Auto (DP8962R) Dimensions; Length: 9,135 mm (Overall) Width: 2,505 mm Height: 2,615 mm (On Ground) Height: 4,280 mm (Raised) Weight: 20,000 kg - When raised has enough height for a trailer of 1,500 mm to drive underneath Skid Mounted Jack Up Frac Mud Pump Location: Queensland, Australia Learn More

Make: Safe-T Model: BHA STS R1 Year: 2016 - Surplus to requirements Skid Mounted Jack Up Drill Rod Sloop Location: Tasmania, Australia Learn More

Rig Make: Schramm Model: 685 Year: 1996 Hours: 2,500 (Since Rebuild) Engine: Cummins K19 Accessories; - FOPS - Rod Rack - 4x Levelling Jacks - In Mast Make/Break Rod Break Out System - Rotating Cyclone Set Up on Metz Manipulator - Airdrill Maker Breaker - Air Spanner - KL Rod Handler Set to 4.5" Inch Pipe - Dual RC Swivel and Auto Blow Down - ROPS Air-Conditioned Drillers Cabin - Complete Re-Hose 11/25 - Fire Suppression Air Compressor Make: Sullair 1,150 CFM / 500 PSI Water Capacity: Approx. 500 Litres Dimensions; Height: 4.6 m Width: 4.0 m Track Mounted Drill Rig Location: Queensland, Australia Learn More

Rig Make: Hydrapower Model: Explorer 500 Year: 2007 Hours: 6,700 Engine: Cummins CPAK-6BTA Turbo After Cooled 6 Cylinder (176 HP @ 2,500 RPM) Rig Hydraulics; - Sauer Danfoss proportionally controlled control valves - Sauer closed loop pump on Rotary Drive Sauer open loop pump on auxiliary functions Rotary Drive; - Hydrapower Gearbox - Steel Casing with floating hollow spindle and hydraulic head lock and swing - Two Speed, 0 - 225 RPM & 0 - 966 RPM - Low speed torque to 4150 Nm - High speed torque to 966 Nm Head Travel: 6.8 m Main Winch; -Max. Pull: 4,200 kg -Max. Line Speed: 28 m/min Wireline Winch; Max. Pull: 780 kg Max. Line Speed: 83 m/min Pulldown; - Electrically controlled with dial for speed control Pull Down Capacity: 7000 kg Pull Out Capacity: 11,500 kg Mast; - Fitted with 2.0 m mast dump for angle drilling - Standard length is 10 m, supplied with hydraulically operated breakout spanner and top pulley swivel - Supplied with hydraulic circuit with quick-connect couplings for optional breakout table - Brakeout Table with Split Type Table - Bean Pump - 5x6 Gardner Denver Mud Pump (Hydraulic Driven) Truck Make: MAN Model: M2000 Year: 2005 KM's: 75,000 - Not registered - Some gearbox problems Truck Mounted Drill Rig Location: New South Wales, Australia Learn More

Make: Exploration Drill Masters EDM Model: MKII Hours: 539 Engine: Hatz 1D90V Max. Load Capacity: 15,000 kg Hydraulics: Rexroth 28CC Piston Pump - Capacity for 1,900 m NQ Drill Pipe in 6 m Lengths - 270 Degree Range of Movement - 2.1 m Arm Displacement - 4.770 m Roller Travel Roller Tramming Speed: 0.79 m/s Track Base Make: Sejin Model: 2P254075 Max. Speed: 0.6 km/h - 2 Speed Jack Up Base - 4 Extending Jack Legs - 1.8 m Jack Up Height Dimensions; Overall Platform Length: 8,460 mm Overall Platform Width: 2,500 mm Overall Height: 2,470 mm Empty Weight: 13,000 kg Clearance When Jacked Up: 1,650 mm Track Mounted Jack Up Rod Sloop Rod Feeder Location: Western Australia Learn More

Make: Mud Puppy Model: MP-255-2SC - Mounted on Hydraulic Jack Up Rod Sloop Mud Recycler Pump Location: New South Wales, Australia Learn More

Make: Boart Longyear P/N: 3000320 - Never Used - Can be used on Boart Longyear U/G Coring Drill Rigs Rod Handler Head Assembly Location: South Australia Learn More

Model: OIE187 Cannon Fan: 425,000 m3/hr / Dual Fiber Glass PAG Impeller Discharge Hose: 1.5" Inch & 500 PSI High Pressure Pump: 7-8 Bars Discharge Fan Power: 130 kW Pump Power: 55 kW Pump Flow: 150 m3/hr Evaporation Rate: 24.98 lps @ 60% Daily Operating Time: 10 Hours + - SS Ring with Nozzles - Spiral Nozzle SS316 - Fan Safeguard Mesh - Control Panel Generator Make: Shanghai Stamford Brushless Engine: Dongfeng Cummins Control System: HGM6110 Large Screen Radiator: Engine Standard Matching Fuel Tank: 1,000 Litres Battery: 2x Camel 12V Weight: 6,000 kg approx. - Waste Water Handling - Dewatering Process - Tailing Dams - Water Production - Rainstorm Water Clearance Water Evaporator Location: Queensland, Australia Learn More

Model: OIE187 Cannon Fan: 425,000 m3/hr / Dual Fiber Glass PAG Impeller Discharge Hose: 1.5" Inch & 500 PSI High Pressure Pump: 7-8 Bars Discharge Fan Power: 130 kW Pump Power: 55 kW Pump Flow: 150 m3/hr Evaporation Rate: 24.98 lps @ 60% Daily Operating Time: 10 Hours + - SS Ring with Nozzles - Spiral Nozzle SS316 - Fan Safeguard Mesh - Control Panel Generator Make: Shanghai Stamford Brushless Engine: Dongfeng Cummins Control System: HGM6110 Large Screen Radiator: Engine Standard Matching Fuel Tank: 1,000 Litres Battery: 2x Camel 12V Weight: 6,000 kg approx. - Waste Water Handling - Dewatering Process - Tailing Dams - Water Production - Rainstorm Water Clearance Water Evaporator Location: Queensland, Australia Learn More

Make: Epiroc Model: DM-L Year: 2005 Hours: 8,453 Engine: Cummins QSX15 Tier 3 - 33.5" Inch Triple Grouser Tracks - 30' Foot Tower Carousel - Can be set up for 5.5" Inch or 6.25" Inch Rods - 4 or 5 Pieces Air End Track Mounted Rotary Drill Rig Location: United States of America Learn More

Rig Make: Hanjin Model: D&B-8D Year: 2016 Hours: 5,800 Pull: 6 Metres - 1x Set of NQ Jaws *New* - 1x Set of HQ Jaws *New* - Cameron Water Gauge *New* - Wrap Around Mast - SPT Hammer Included - Rod Racks - Suction Hose and 2x Double Braid 1" Inch Duffield Bypass Hoses - 5x 100 mm Augers and 1x Bit Plus Drive Sub - 1 1/2" Inch Centrifugal Pump and Hoses - Plus Camlocks *All New* - 36" Inch & 24" Inch Stilsons - Chain Wrench - 1.5 Metre NMLC Core Barrel Plus 5x 3 Metre NQ Rods - 2x Mud Tanks - 7x5' Foot Box Trailer Tracked Mounted Drill Rig Location: New South Wales, Australia Learn More

Rig Make: UDR Model: 650 Hours: 9,202 - Commissioned Mid 2023 - Onboard PTO Driven Air Compressor - New water pump - New fan belts - New radiator core - Recent service with oil & new filters - New rod & piston seals to main feed Ram - New Dump Mast Ram - New rods & seals to mast raise rams - New side shift ram - New break out ram - New rod crane raise ram - New hydraulic valve blocks in control cabinet for main pump & secondary pump controls - New micro control fine feed controller - Replaced majority of gauges with new - New main rotation shaft seals & speedy sleeves - New main rotation torque control cartridge - New hammer oiler pump - New seats & O rings in majority of valve banks Air Compressor - New Air / Oil separator filter - New Oil stop valve - New Castrol Aircoil 68 synthetic oil - New filters - Recently been serviced by Midcoast Compressors Truck Make: MAN Year: 1997 KM's: 200,000 Type: 8x8 Transmission: Recon 18 Speed Gear Box - Kevrek 1500 Hiab Crane with Winch & Umbilical Cord Remote - Radiator back flushed - New Water Pump - New Fan Belts - New brake boosters on every wheel - New four way valve - New valve on brake pedal - Rebuilt Truck Compressor - New air on drivers seat - New air valves on diff locks / cross locks - New clutch, fly wheel & pressure plate - New bearings & seals in Dana drive box - New oil pump on Dana drive box - New universals on tail shafts - New ram on power steering - New tyres all around - All ball joints on truck replaced that were needed, or new rubbers on them - Recently passed Pit Inspection - 7 months Rego as Plant - No need for overhang permits; within length Truck Mounted Drill Rig Location: New South Wales, Australia Learn More

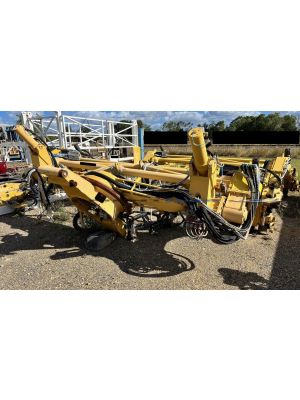

Make: Drillmec Quantity: 4 Rod Loaders Location: Queensland, Australia Learn More

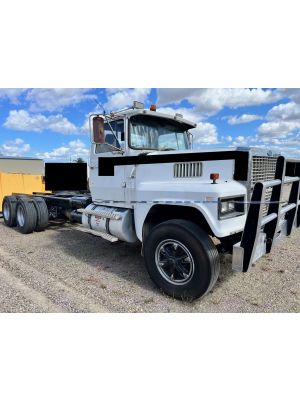

Make: Ford Model: 9000 L Series Year: 1990 Cab Chassis Truck Location: Queensland, Australia Learn More

Rig Make: Edson Model: Versadrill 300 Year: 1996 Engine: Hatze - 6x6 Multidrive Technology - Rotation head MR260 Rotation hollow spindle, single speed, dial in, rotation head around 120 rpm - Winching gear on back of mast for hollow augering - Can do diamond drilling if you were to change the hydraulic motor - Dump Mast - Near New Hydraulic Pump - 4x Leveling Jacks - Currently doing 80mtr holes at 4.5” - Client used to aircore with it, but currently set up doing mud - Used to do a lot of Geotech work, 6” hollow augering - Southern Cross Mud pump on the side - 3.2 mtr Stroke - 3 mtr Rods - Extension arm to run 6mtr casing into the ground Ute Make: Toyota Model: Landcruiser Year: 1990 KM's: 107,000 Ute Mounted Drill Rig Location: Western Australia Learn More

Make: Atlas Copco Model: Pit Viper 275 Hours: 19,237 Load Capacity: 75,000 lb Engine: Caterpillar CAT C32 - 4 Rod Carousel approx. 40 ft. - Atlas Copco QAS 45 Diesel Generator Dimensions; Length: 41ft. 6 inch / 63ft. 6 inch (Tower Down) Width: 18ft. 4 inch Height: 67ft. / 22ft 1 inch (Tower Down) Track Mounted Drill Rig Location: Canada Learn More
