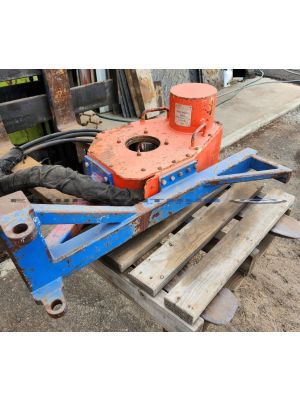

Make: UDR Rod Spinner Location: Victoria, Australia Learn More

Rig Make: Boart Longyear Model: LF90 Year: 2008 Hours: 14,154 - Fitted with KWL 400 Head as Top Drive - Masts are locked at 6 Metre Rod Pull - Has been drilling in Iron Ore Truck Make: Tatra Year: 2008 KM's: 37,735 Type: 8x8 Truck Mounted Drill Rig Location: Western Australia Learn More

Make: Rotacan Type: 9 1/4" Inch OD Thickness: 1 1/4" Inch Beco 6 Length: 25 Foot Quantity: 12 Condition: New (Without Use) Drill Rod / Pipe Location: Chile Learn More

Mud Pump Make: FMC Model: M28 Engine: Scania DS16 @ 2,000hrs 700HP - 700 HP Hydraulic Drive - Mixing Tank - Shale Shaker - Cyclone Cleaning System Tri-Axle Trailer Package Location: Western Australia Learn More

Make: Ford Louisville Model: LTL9000 Year: 1990 Engine: Detroit Series 60 13 Litre @ 500 HP Transmission: Roadranger RT14715 Diff: 44,000 lbs Suspension: Hendrikson 44,000 kg Walking Beam - Spare Bonnet with Truck Truck Location: Queensland, Australia Learn More

Make: Mole Pioneer Model: P400S 450HQ Hours: 2,940 Engine: Perkins 119 kW Diesel - Onboard W1122 Bean Pump Rotation Head Model: KL400 Top Drive Stroke: 1,200 mm Drilling Angle: 90 degrees vertical to 45 degrees horizontal Drilling Depth Capacity B Size: 900 metres N Size: 700 metres H Size: 450 metres P Size: 275 metres Truck Make: Ford Model: Cargo Series KM's: 25,372 Year: 1985 Type: 6x4 Condition: Good *For more information, please contact us* Mole Truck Mounted Drill Rig Location: Queensland, Australia Learn More

Drill Rig Make: Chicago Pneumatic Model: CP650 Year: 1981 Engine: Caterpillar CAT 3406 Onboard Air Compressor: GHH 825 CFM / 350 PSI Twin Screw Injection Pump: Comet APS 71 ltr/min @ 580 PSI Casing Driver: 612 Banger 6" Inch - 12" Inch Winch: 1/2" Inch 7,000 lbs Extendable Rod Handling Jib Hole Capacity: 6" Inch - 12" Inch 500 m 4 1/2" Inch Rods Capacity; Pull Down: 21,000 lbs Pull Back: 55,000 lbs 5 1/2" Inch Heavy Hoist Rams 73 ft/min Rapid Feed - 160 Pitch Chains Levelling Jacks; Front: 1 x 5" Inch x 48" Inch Stroke Rear: 2 x 5" Inch x 36" Inch Stroke Top Drive Rotary; 0-152 RPM - 76,000 lb Torque Twin Dynex Motors R/C Head - 7 m Travel Carrier Type: 6x4 Engine: Caterpillar CAT 3208 @ 210 HP Crane Carrier Carrier Mounted Water Well Drill Rig Location: New Zealand Learn More

Q80K - Top Head Drive - 0-8,328 Nm (6,142 ft/lbf) in low gear - High Gear 3.04:1 Ratio - Low Gear 12.61:1 Ratio - Shift between High and Low Gear Ratios - 0-1,500 RPM Speed Range - Splined Floating Spindle - Independent Pressurized Lubrication System - Gearbox oil level inspection windows - Variable Speed Hydraulic Motor - Gear train for High/Low Ratio Q150K - Top Head Drive - 0-14,324 Nm (10,564 ft/lbf) in low gear - High Gear 3:1 Ratio - Low Gear 22.5:1 Ratio - Shift between High and Low Gear Ratios - 0-1,500 RPM Speed Range - Splined Floating Spindle - Independent Pressurized Lubrication System - Gearbox oil level inspection windows - Variable Speed Hydraulic Motor - Planetary Gear set for High/Low Ratio Q280K - Top Head Drive - 0-28,000 Nm (20,651 ft/lbf) in low gear - High Gear 3:1 Ratio - Low Gear 22.5:1 Ratio - Shift between High and Low Gear Ratios - 0-1,500 RPM Speed Range - Splined Floating Spindle - Independent Pressurized Lubrication System - Gearbox oil level inspection windows - Variable Speed Hydraulic Motor - Dual Planetary Gear set for High/Low Ratio Rotation Head Gearboxes Location: Australia Learn More

Body Opening: 225 mm (8 3/4" Inch) OD - Fabricated High Tensile Steel Base Frame for increased strength and lighter unit weight - High Tensile Fabricated Lever Arms - Adjustable Connecting with Left & Right Hand Threads allowing accurate adjustment of jaw actuation - Cast Jaw Assemblies to suit most standard drill rod sizes - Light weight casting approx. 16 kg per jaw - Easily replaceable Gripper Inserts for NQ & HQ Jaw Sizes - RC Slips Table, Holders and Inserts to suit 3 1/2", 4" & 4 1/2" Rod Sizes - Changeable with Industry Standard Rod Clamps Rod Clamp Location: Australia Learn More

Model: FH3000 Engine: Cummins QSL Electronic @ 255 kW (342 HP) Pull Back: 280 kN (62,900 lbf) Limited Speed 244.8 kN (55,033 lbf) Full Speed Pull Down: 115 kN (25,853 lbf) Water Pump Options; - Standard FMC W1122BCD 140 lpm @ 1,000 psi - FMC L11-18SC 265 lpm @ 1,800 psi Depth Capacity; NQ Core: 2,030 m HQ Core: 1,377 m Open Hole 3 1/2" Inch Rods: 900 m RC 4 1/2" Inch: 600 m (Nominal) Traverse Speed; Maximum Speed: 55.5 m/min (182 ft/min) Rotation Head; - Top Head Drive - Maximum Torque: 14,324 Nm (10,564 ft/lb) in low gear - 0-1,500 RPM Speed Range - 100% Theoretical Main Winch; - Maximum Pull: 226 kN (50,806 lbf) - Maximum Speed: 100 m/min (328 ft/min) - 2x Multi Disc Brake Units - Fail Safe Spring Activated - Hydraulic Pressure Release - 9 Metre Rod Pull Capacity Wireline Winch; - Maximum Pull: 27 kN (6,069 lbf) - Rope Capacity: 3,000 Metres x 8 mm Rope - Maximum Speed: 450 m/min (1,476 ft/min) New Build Multipurpose Track / Truck Mounted Drill Rig Location: Australia Learn More

Model: FH2000 Engine: Caterpillar CAT C7.1 Electronic @ 205 kW (275 HP) Pull Back: 280 kN (62,900 lbf) Limited Speed 244.8 kN (55,033 lbf) Full Speed Pull Down: 115 kN (25,853 lbf) Water Pump Options; - Standard FMC W1122BCD 140 lpm @ 1,000 psi - FMC L11-18SC 265 lpm @ 1,800 psi Depth Capacity; NQ Core: 2,030 m HQ Core: 1,377 m Open Hole 3 1/2" Inch Rods: 900 m RC 4 1/2" Inch: 600 m (Nominal) Traverse Speed; Up: 50 m/min (164 ft/min) Down: 39 m/min (128 ft/min) Rotation Head; - Top Head Drive - Maximum Torque: 14,324 Nm (10,564 ft/lb) in low gear - 0-1,500 RPM Speed Range - Bosch Rexroth A6VM160 Variable Displacement Motor - High Gear 3:1 & Low Gear 19.57:1 ratios - Adjustable Rotation Torque Control - Infinitely Variable Rotation Speed Control - Floating Spindle 3 1/2" Inch API IF Pin Thread - Pressure Lube Bearings and Gears with filtered and cooled lubrication oil system Main Winch; - Maximum Pull: 156 kN (35,048 lbf) - 120 m/min (394 ft/min) - Mast Top Mounted - Electronic Winch Travel - Fail to safe - 28 mm Main Winch Rope - Safety Factor 3.35:1 (exceeds BS/EN791) - 1x Bosch Rexroth A6VM160 Variable Displacement Motors - 1x Brevini Planetary Reduction Gear Boxes - 1x Multi Disc Brake Units - Fail Safe Spring Activated - Hydraulic Pressure Release Wireline Winch; - Mast Mounted - Maximum Pull: 25 kN (5,617 lbf) - Rope Capacity: 2,100 Metres x 8 mm Rope - Adjustable Position Wireline Spooler - Maximum Speed: 450 m/min (1,476 ft/min) - Adjustable Pull Limiter - Safety Stop System - Wireline Depth Counter as an option New Build Multipurpose Track / Truck Mounted Drill Rig Location: Australia Learn More

Model: FH1300 Engine: Caterpillar CAT C7.1 Electronic @ 187 kW (250 HP) Pull Back: 115 kN (25,853 lbf) Actual Pull Down: 70 kN (15,736 lbf) Water Pump Options; - Standard FMC W1122BCD 140 lpm @ 1,000 psi - FMC L11-18SC 265 lpm @ 1,800 psi Depth Capacity; NQ Core: 1,300 m HQ Core: 885 m Open Hole 3 1/2" Inch Rods: 380 m RC 4 1/2" Inch: 220 m (Nominal) Traverse Speed; Up: 60 m/min (196.8 ft/min) Down: 56 m/min (183.7 ft/min) Rotation Head; - Top Head Drive - Maximum Torque: 8,087 Nm (6,111 ft/lb) in low gear - 0-1,500 RPM Speed Range - Two Speed Gearbox - High Gear 3.04:1 & Low Gear 12.61:1 ratios - Variable Displacement 160cc Hydraulic Motor - Adjustable Rotation Torque Control - Infinitely Variable Rotation Speed Control - Floating Spindle 3 1/2" Inch API IF Pin Thread - Pressure Lube System with Cooler and Filter Main Winch; - Maximum Pull: 100 kN (10,000 lbf) - 120 m/min (393 ft/min) - Mast Top Mounted - Electronic Winch Travel - Fail to safe - Main Winch Rope - Safety Factor to Meet BS/EN791 - Planetary Reduction Gear Box & Brake - Variable Displacement Hydraulic Motor Drive Wireline Winch; - Deck Mounted - Maximum Pull: 15 kN (3,372 lbf) - Rope Capacity: 1,400 Metres x 6 mm Rope - Adjustable Position Wireline Spooler - Maximum Speed: 450 m/min (1,476 ft/min) - Adjustable Pull Limiter - Safety Stop System - Wireline Depth Counter as an option New Build Multipurpose Track / Truck Mounted Drill Rig Location: Australia Learn More

Model: FH1000 Pull Back: 97 kN (21,783 lbf) Pull Down: 45 kN (10,116 lbf) Water Pump: Standard FMC W1122BCD 140 lpm @ 1,000 psi Depth Capacity; NQ Core: 1,150 m HQ Core: 786 m HWT Core: 518 m RC 4" Inch: 198 m (Nominal) Engine Options; - John Deere Power Tech 6.8L @ 155 kW (208 HP) - Caterpillar CAT C6.6 ACERT - Cummins B5.9-173 Traverse Speed; Up: 47 m/min (154 ft/min) Down: 30 m/min (98 ft/min) Rotation Head; - Top Head Drive - Maximum Torque: 5,965 Nm (4,400 ft/lb) in low gear - 0-1,500 RPM Speed Range - Two Speed Gearbox - 100% Theoretical Main Winch; - Maximum Pull: 88.4 kN (19,870 lbf) - 55 m/min (180 ft/min) - Mast Top Mounted - 1x Multi Disc Brake Unit - Fail Safe Spring Activated - Hydraulic Pressure Release - Main Winch Rope - Safety Factor to Meet BS/EN791 - 6 Metre Rod Pull Capacity Wireline Winch; - Deck Mounted - Maximum Pull: 13.5 kN (3,044 lbf) - Rope Capacity: 1,400 Metres x 6 mm Rope - Maximum Speed: 342 m/min (1,124 ft/min) New Build Multipurpose Track / Truck Mounted Drill Rig Location: Australia Learn More

Model: 1750 Scout Engine: Perkins Diesel Torque: 2,500 Nm at 205 bar and 110 RPM Stroke: 1.75 m Pull-Out / Pull-Down: 1,100 kg Capacity (Guide Only): NQ - 60 m / 4" Inch Open Hole - 30 m / 3 1/2" Inch Auger - 15 m - Custom Toyota 33220 Tray - Direct Dive Auger Head with High Torque Head Motor and Fittings - Fine Feed Control - Auger Drive Sub (1 1/8" Inch Hex) - RHS Mast - Tilt Frame for Vehicle/Trailer Mounting - Hydraulic Tilt - Heavy Duty Pull-Down Chain - Nylon Idler Rollers - Standard Auger Guide - Standard Control Panel - Hydraulic Operation - Rain Hood for Motor & Lockable Cage for Spare Wheel & Motor - Remove Throttle and Stop - Water Filter for Fuel / Water Separation - Light Guard for Augers 500 mm to 1,800 mm - Oil Cooler - Simple Rack for Augers Options for Drill; - Hollow Spindle Head and Tooling for Fluid Drilling - 2 Levelling Jacks for Tray Mount Drills - Tilting Rack for Augers - Alternative Engine Options to suit existing fleet Toyota Landcruiser Upgrade Kit; - Roof Racks for Spare Tyre (31678) - Roof Rack Mounts Pair (31679) - GVM Upgrade Spring Kit @ 4,200 kg (Supply Only - 31680) - Bellows Suspension Kit (Supply Only - 31730) - Storage Box LH Under Deck (33249) - Storage Box RH Under Deck (33248) - Under Deck Water Tanks @ 29 Litres (33137) *Ready for mounting to a Toyota 79 Series Landcruiser Cab Chassis* Drill Rig Location: Australia Learn More

Make: Ariel Model: JGP2 Part Number: CL190390 Weight: 388.1 kg Brand New High Pressure Cooler Panels Location: Victoria, Australia Learn More

Drill Rods Type: 2 3/8" Inch Regular Length: 6 Metre (Most) & 3 Metre (Some) Quantity: 76 + Sloop Drill Rods & Sloop Location: Queensland, Australia Learn More

Includes; - Alfagomma Sample Hose - Spin Cage - Rod Slide - Offsiders Deck Drill Rig Cage & Platform Location: Queensland, Australia Learn More

Rod Spinner Location: Queensland, Australia Learn More

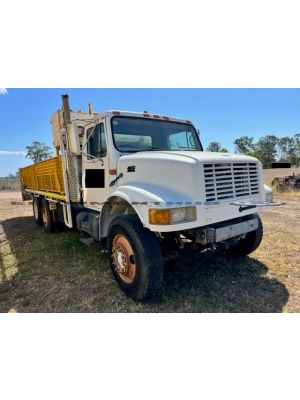

Make: International Navistar Model: 4900 Year: 2001 KM's: 346,813 Type: 6x4 Includes; - 59x 6 Metre HQ Drill Rods - 34x 6 Metre HWT Drill Rods - 2x Inner Tubes - 1x Barrel Complete Support Truck Location: Queensland, Australia Learn More

Make: Hy-Seal Model: Series E 500 mm - Operated with Pneumatic Actuator Knife Gate Valve Location: Queensland, Australia Learn More
